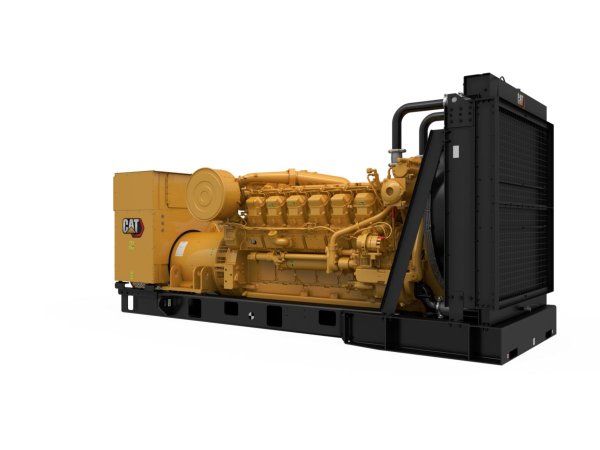

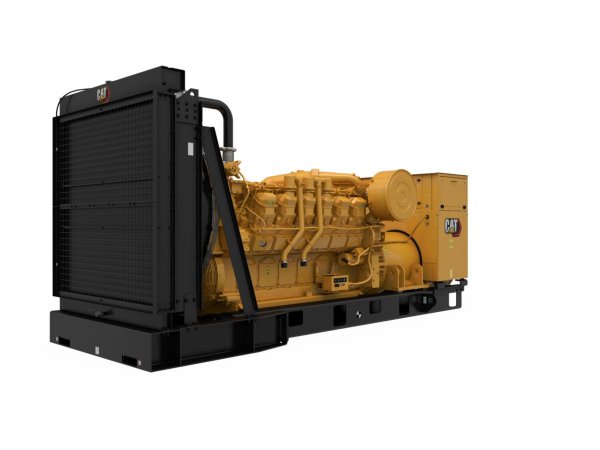

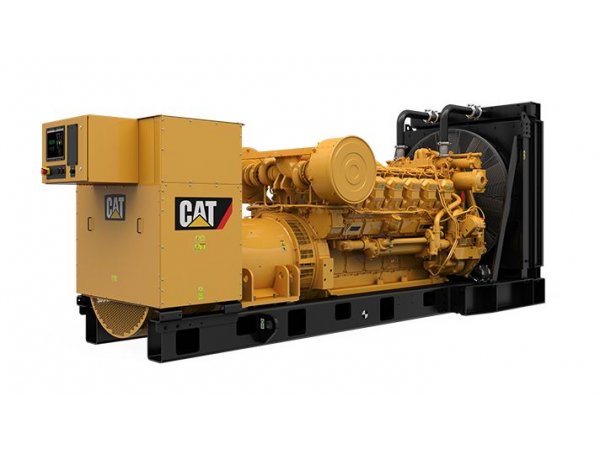

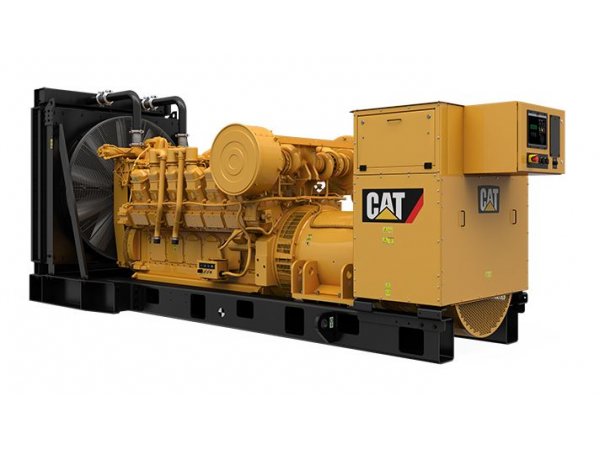

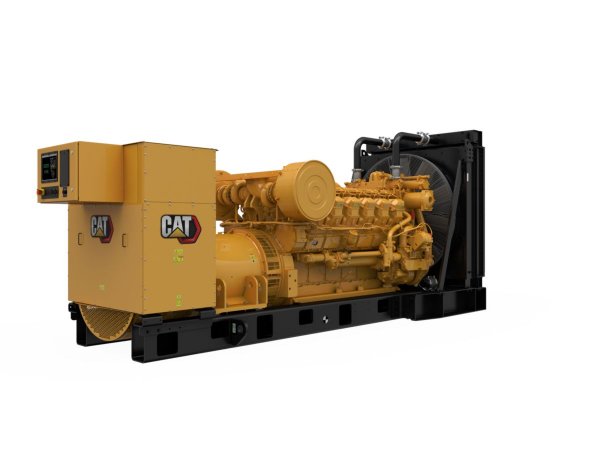

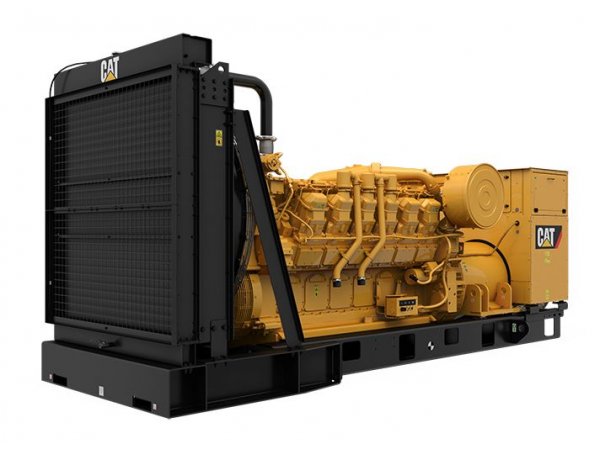

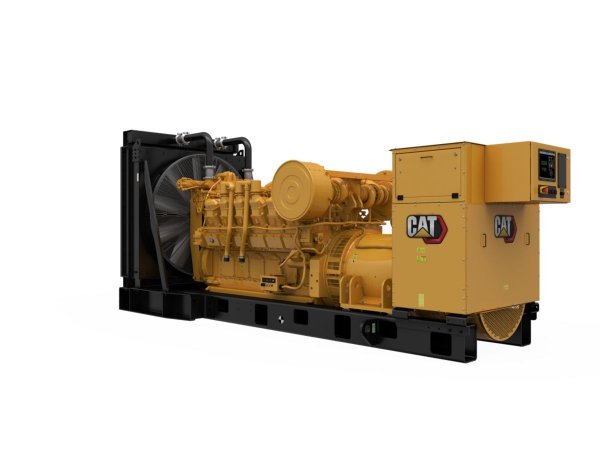

3512 (50 Hz) - GRUPOS GERADORES

  • ColeçãoColeçãoGRUPOS GERADORES
carousel
carousel
carousel
carousel
carousel
carousel
carousel
carousel
carousel
carousel
carousel
carousel

Descrição

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Informações Tećnicas

  • Minimum Rating: 1000 kVA
  • Maximum Rating: 1400 kVA
  • Emissions/Fuel Strategy: Low Fuel Consumption

Mais informações

Generator Set Specifications

  • Minimum Rating: 1000 kVA
  • Maximum Rating: 1400 kVA
  • Voltage: 380 to 415 Volts
  • Frequency: 50 Hz
  • Speed: 1500 rpm
  • Emissions/Fuel Strategy: Low Fuel Consumption
  • Length - Maximum: 5249 mm / 206.6 in
  • Width - Maximum: 1975 mm / 77.8 in
  • Height - Maximum: 2367 mm / 93.2 in
  • Duty Cycle: Standby, Mission Critical, Prime, Continuous

Generator Set Configurations

  • Emissions/Fuel Strategy: Low Fuel Consumption

Engine Specifications

  • Engine Model: 3512 TA, V-12, 4-Stroke Water-Cooled Diesel
  • Displacement: 51.8 l / 3161.03 in³
  • Fuel System: Direct Unit Injection
  • Aspiration: TA
  • Governor Type: Woodward
  • Compression Ratio: 13.5:1
  • Bore: 170 mm / 6.69 in
  • Stroke: 190 mm / 7.48 in

Generator Set Dimensions

  • Length - Maximum: 5249 mm / 206.6 in
  • Width - Maximum: 1975 mm / 77.8 in
  • Height - Maximum: 2367 mm / 93.2 in
  • Length - Minimum: 5149 mm / 202.7 in
  • Dry Weight - Genset (minimum): 10270 kg / 22650 lb
  • Dry Weight - Genset (maximum): 10510 kg / 23170 lb

Dimensions

  • Length - Maximum: 5249 mm / 206.6 in
  • Width - Maximum: 1975 mm / 77.8 in
  • Height - Maximum: 2367 mm / 93.2 in
  • Length - Minimum: 5149 mm / 202.7 in
  • Dry Weight - Genset (minimum): 10270 kg / 22650 lb
  • Dry Weight - Genset (maximum): 10510 kg / 23170 lb
