315F L – ESCAVADORAS

  • ColeçãoColeçãoESCAVADORAS
carousel
carousel
carousel
carousel
carousel
carousel
carousel
carousel

Descrição

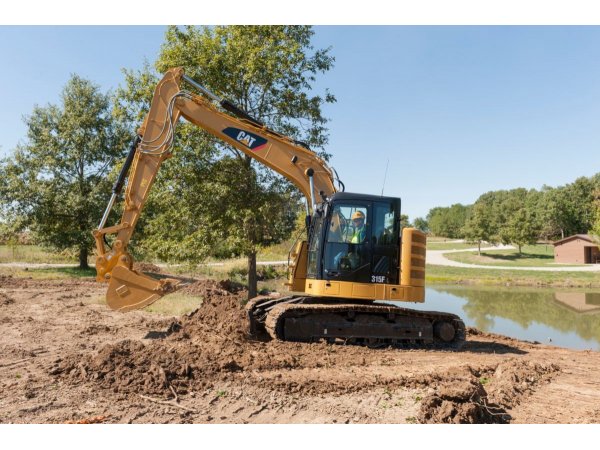

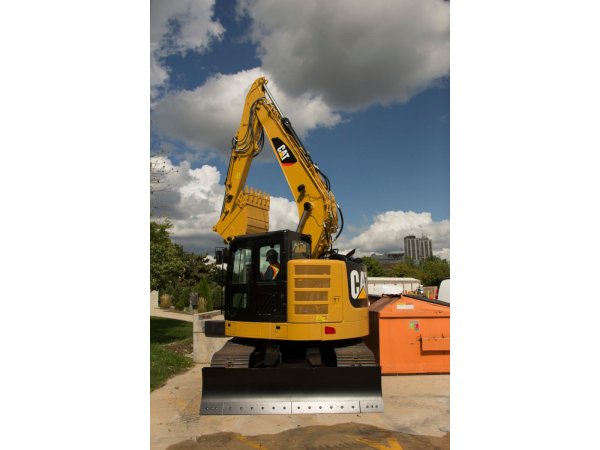

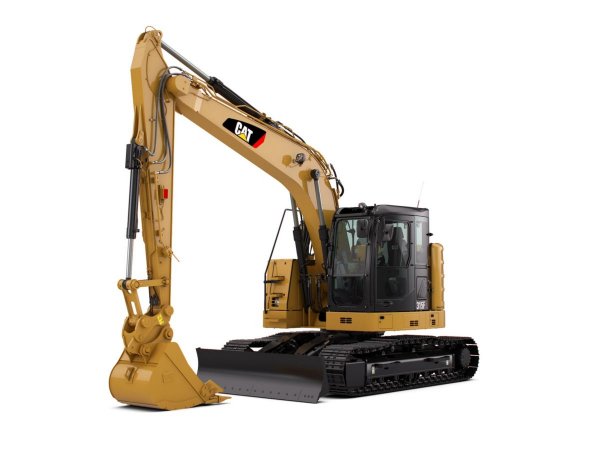

A escavadora Cat® 315F L é uma solução produtiva e altamente versátil para as aplicações de serviço médio. Com um design de raio compacto, permite trabalhar em espaços apertados sem comprometer o desempenho. O potente sistema hidráulico aumenta a produtividade, fazendo com que a máquina utlize uma performance superior na classe de tamanho de 15 toneladas.

Informações Tećnicas

  • Gross Power – SAE J1995: 74 kW (100 hp/101 PS)
  • Operating Weight: 17140 kg

Mais informações

Engine

  • Engine Model: C4.4
  • Flywheel Power:
  • Net Flywheel Power: 72 kW / 97 HP
  • Gross Power – SAE J1995: 74 kW (100 hp/101 PS)
  • Engine Power – ISO 14396: 74 kW / 100 HP
  • Net Power – SAE J1349/ISO 9249: 72 kW (97 hp/98 PS)
  • Bore: 105 mm / 4.1 in
  • Stroke: 127 mm / 5 in
  • Displacement: 4.4 l / 270 in³
  • Engine Power – ISO 9249: 72 kW / 97 HP

Hydraulic System

  • Main System – Maximum Flow – Total: 256 l/min / 67 gal/min
  • Maximum Pressure – Equipment: 30500 kPa / 4420 psi
  • Maximum Pressure – Travel: 35000 kPa / 5080 psi
  • Maximum Pressure – Swing: 23000 kPa / 3340 psi
  • Pilot System – Maximum Flow: 21.9 l/min / 4.8 gal/min
  • Pilot System – Maximum Pressure: 4120 kPa / 600 psi
  • Maximum Pressure – Power Offset Boom – Optional: 29900 kPa / 4340 psi
  • Main System – Maximum Flow: 256 l/min (67 gal/min)

Machine Weight

  • Operating Weight: 17140 kg / 37794 lb
  • Maximum Operating Weight: 17140 kg / 37794 lb
  • Minimum Operating Weight: 15100 kg / 33296 lb

Service Refill Capacities

  • Fuel Tank Capacity: 178 l / 47 gal (US)
  • DEF Tank Capacity: 19 l / 5 gal (US)
  • Cooling System: 28 l / 7.4 gal (US)
  • Engine Oil – With Filter: 13.5 l / 3.6 gal (US)
  • Swing Drive – Each: 2.4 l / 0.6 gal (US)
  • Final Drive – Each: 3 l / 0.8 gal (US)
  • Hydraulic System – Including Tank: 160 l / 42.3 gal (US)
  • Hydraulic Tank: 84 l / 22.2 gal (US)
  • Engine Oil: 13.5 l / 3.6 gal (US)
  • Swing Drive: 2.4 l / 0.6 gal (US)
  • DEF Tank: 19 l / 5 gal (US)

Air Conditioning System

  • Air Conditioning: The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.6 kg of refrigerant which has a CO2 equivalent of 0.858 metric tonnes.

Dimensions

  • Boom: Reach 4.65 m (15’3
  • Bucket: GD 0.53 m³ (0.69 yd³)
  • Stick: R3.0 m (9’10
  • Shipping Height: 3000 mm / 9.83 ft
  • Shipping Length: 7450 mm / 24.4 ft
  • Tail Swing Radius: 1530 mm / 5 ft
  • Length – Center of Rollers: 3040 mm / 10 ft
  • Track Length: 3750 mm / 12.33 ft
  • Ground Clearance: 440 mm / 1.42 ft
  • Track Gauge: 1990 mm / 6.5 ft
  • Cab Height: 9.25 ft / 2810 mm
  • Cab Height with Top Guard: 2950 mm / 9.67 ft
  • Counterweight Clearance: 860 mm / 2.83 ft
  • Transport Width – 600 mm (24: 2590 mm / 8.5 ft
  • Shipping Height – Top of Cab: 3000 mm / 9.83 ft
  • Transport Width: 2690 mm / 8.8 ft
  • Shipping Length – with Blade: 8010 mm / 26.25 ft
  • Length to Center of Rollers: 3040 mm / 10 ft

Working Ranges

  • Boom: Reach Boom – 4.65 m (15’3
  • Stick: R3.0 m (9’10
  • Bucket: 0.53 m3 (0.69 yd3)
  • Maximum Digging Depth: 5950 mm / 19.5 ft
  • Maximum Reach at Ground Level: 8680 mm / 28.5 ft
  • Maximum Cutting Height: 9640 mm / 31.67 ft
  • Maximum Loading Height: 7190 mm / 23.58 ft
  • Minimum Loading Height: 2060 mm / 6.75 ft
  • Maximum Depth Cut for 2440 mm (8”0’) Level Bottom: 5770 mm / 18.92 ft
  • Maximum Vertical Wall Digging Depth: 5280 mm / 17.33 ft
  • Bucket Digging Force (SAE): 85 kN / 19200 lbf
  • Stick Digging Force (SAE): 12800 lbf / 57 kN
  • Bucket Digging Force (ISO): 95.3 kN / 21420 lbf
  • Stick Digging Force (ISO): 58.4 kN / 13130 lbf

Working Ranges* – Reach Boom – 4.65 m (15’3″); R3.0 m (9’10”) Stick

  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:
  • Maximum Loading Height:

Geral

  • Transport Width – 600 mm (24: 2590 mm / 8.5 ft

Swing Mechanism

  • Swing Speed: 11 r/min / 11 r/min
  • Maximum Swing Torque: 30.9 kN·m / 22790 ft·lbf

Weights

  • Operating Weight: 17140 kg / 37794 lb

Working Ranges & Forces

  • Maximum Digging Depth: 5950 mm / 19.5 ft
  • Boom: Reach 4.65 m (15’3
  • Stick: R3.0 m (9’10
  • Bucket: GD 0.53 m³ (0.69 yd³)
  • Maximum Reach at Ground Level: 8680 mm / 28.5 ft
  • Maximum Cutting Height: 9640 mm / 31.67 ft
  • Maximum Loading Height: 7190 mm / 23.58 ft
  • Minimum Loading Height: 2060 mm / 6.75 ft
  • Maximum Depth Cut for 2440 mm (8 ft) Level Bottom: 5770 mm / 18.92 ft
  • Maximum Vertical Wall Digging Depth: 5280 mm / 17.33 ft
  • Bucket Digging Force – ISO: 95.3 kN / 21420 lbf
  • Stick Digging Force – ISO: 58.4 kN / 13130 lbf
