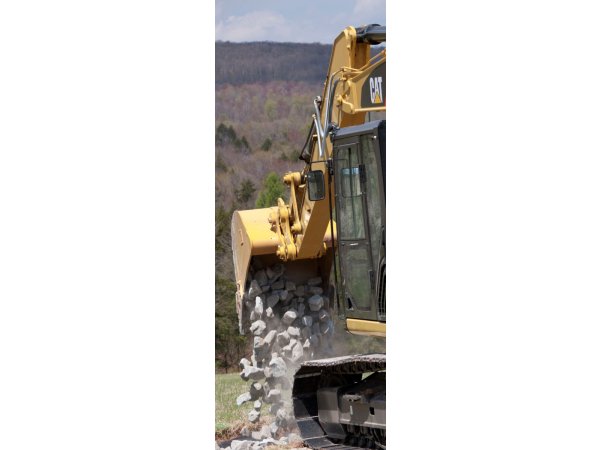

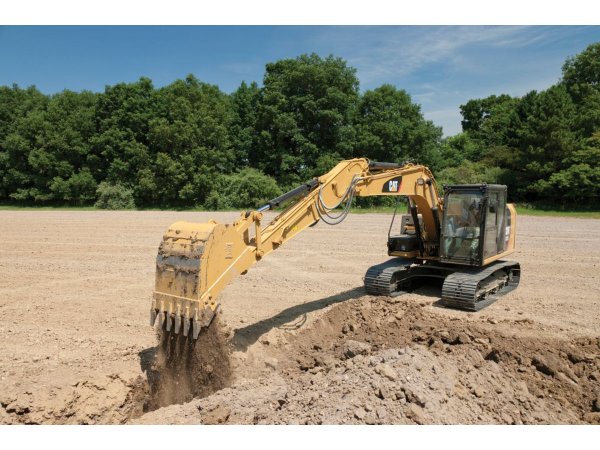

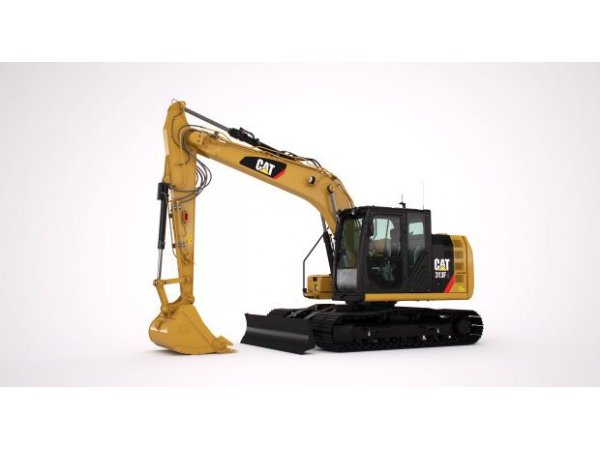

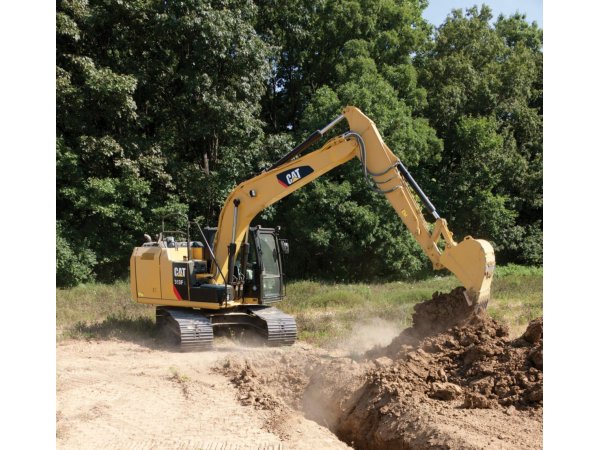

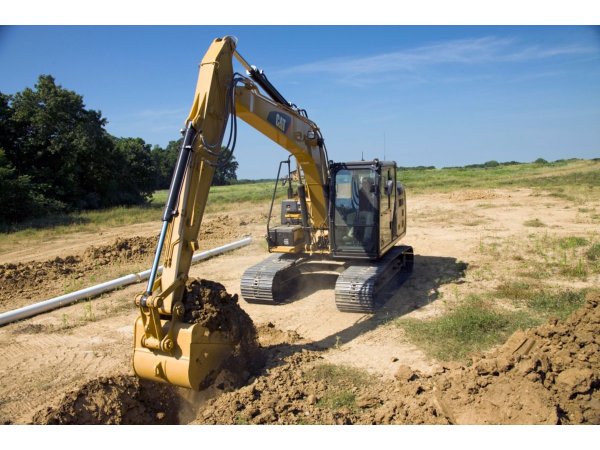

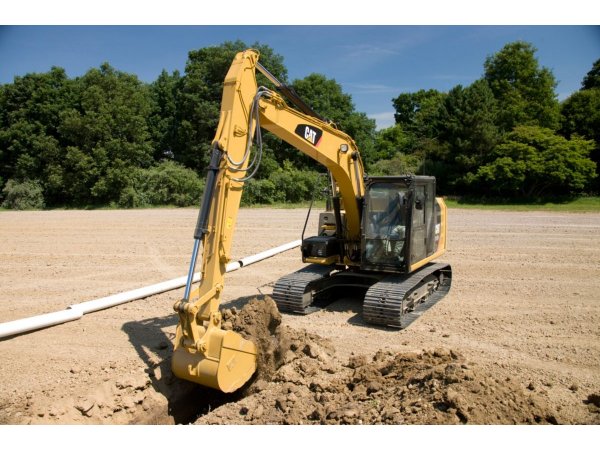

A Escavadora Cat® 313F L é uma solução confiável e versátil para aplicações consideradas leves ou médias. Com um motor Cat® C4.4 eficiente em termos de combustível, estruturas e componentes robustos bem como um sistema hidráulico de última geração, a 313F permite mover o material durante todo o dia com velocidade e precisão constantes.

Informações Tećnicas

• Gross Power - SAE J1995: 74 kW (100 hp/101 PS)
• Operating Weight: 15000 kg

Mais informações

Dimensions

• Length - Center of Rollers: 3040 mm / 10 ft
• Boom: Reach 4.65 m (15'3
• Stick: R3.0 m (9'10
• Bucket: GD .53 m3 (.69 yd3)
• Shipping Height: 2820 mm / 9.3 ft
• Shipping Length: 7670 mm / 25.2 ft
• Tail Swing Radius: 2160 mm / 7.1 ft
• Track Length: 3750 mm / 12.3 ft
• Ground Clearance: 440 mm / 1.4 ft
• Track Gauge: 1990 mm / 6.5 ft
• Transport Width - 700 mm (28: 2690 mm / 8.8 ft
• Cab Height: 2770 mm / 9.1 ft
• Cab Height with Top Guard: 2970 mm / 9.9 ft
• Counterweight Clearance: 890 mm / 2.9 ft
• Shipping Height - Top of Cab: 2820 mm / 9.3 ft
• Shipping Length - with Blade: 7960 mm / 26.1 ft
• Length to Center of Rollers: 3040 mm / 10 ft
• Transport Width: 2690 mm / 8.8 ft

Engine

• Engine Model: C4.4
• Net Flywheel Power: 69 kW / 92 HP
• Gross Power - SAE J1995: 74 kW (100 hp/101 PS)
• Net Power - SAE J1349: 69 kW (92 hp/93 PS)
• Bore: 105 mm / 4.13 in
• Stroke: 127 mm / 5 in
• Displacement: 4.4 l / 269 in³
• Engine Power - ISO 9249: 68 kW / 92 HP
• Engine Power - ISO 14396: 74 kW / 100 HP

Hydraulic System

• Main System - Maximum Flow - Total: 256 l/min / 67 gal/min
• Maximum Pressure - Equipment: 30500 kPa / 4424 psi
• Maximum Pressure - Travel: 35000 kPa / 5076 psi
• Maximum Pressure - Swing: 25000 kPa / 3626 psi
• Pilot System - Maximum Flow: 22 l/min / 5.8 gal/min
• Pilot System - Maximum Pressure: 4120 kPa / 598 psi
• Main System - Maximum Flow: 256 l/min (67 gal/min)

Machine Weight

• Operating Weight: 15000 kg / 33080 lb
• Minimum Operating Weight: 13500 kg / 29770 lb
• Maximum Operating Weight: 15000 kg / 33080 lb

Service Refill Capacities

• Fuel Tank Capacity: 250 l / 66 gal (US)
• DEF Tank Capacity: 19.6 l / 5.2 gal (US)
• Cooling System: 11 l / 2.9 gal (US)
• Engine Oil - With Filter: 13.5 l / 3.6 gal (US)
• Swing Drive: 2.4 l / 0.6 gal (US)
• Final Drive - Each: 3 l / 0.8 gal (US)
• Hydraulic System Oil - Including Tank: 103 l / 27.2 gal (US)
• Hydraulic Tank Oil: 90.6 l / 23.9 gal (US)
• Engine Oil: 13.5 l / 3.6 gal (US)
• Hydraulic System - Including Tank: 103 l / 27.2 gal (US)
• Hydraulic Tank: 90.6 l / 23.9 gal (US)
• DEF Tank: 19.6 l / 5.2 gal (US)

Air Conditioning System

• Air Conditioning: The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.9 kg of refrigerant which has a CO2 equivalent of 1.287 metric tonnes.

Working Ranges

• Boom: Reach Boom 4.65 m (15'3
• Stick: R3.0 m (9'10
• Bucket: GD 0.53 m3 (0.69 yd3
• Maximum Digging Depth: 6040 mm / 19.8 ft
• Maximum Reach at Ground Level: 8230 mm / 27 ft
• Maximum Cutting Height: 8720 mm / 28.6 ft
• Maximum Loading Height: 6330 mm / 20.8 ft
• Minimum Loading Height: 1530 mm / 5 ft
• Maximum Depth Cut for 2440 mm (8”0’) Level Bottom: 5860 mm / 19.3 ft
• Maximum Vertical Wall Digging Depth: 5250 mm / 17.2 ft
• Bucket Digging Force (SAE): 85 kN / 19200 lbf
• Stick Digging Force (SAE): 57 kN / 12800 lbf
• Bucket Digging Force (ISO): 95 kN / 21400 lbf
• Stick Digging Force (ISO): 58 lbf / 13100 kN

Geral

• Transport Width - 700 mm (28: 2690 mm / 8.8 ft

Swing Mechanism

• Swing Speed: 10.9 r/min / 10.9 r/min
• Maximum Swing Torque: 30.9 kN·m / 6946.6 ft·lbf

Weights

• Operating Weight: 15000 kg / 33080 lb

Working Ranges & Forces

• Maximum Digging Depth: 6040 mm / 19.8 ft
• Boom: Reach 4.65 m (15'3
• Stick: R3.0 m (9'10
• Bucket: GD .53 m3 (.69 yd3)
• Maximum Reach at Ground Level: 8230 mm / 27 ft
• Maximum Cutting Height: 8720 mm / 28.6 ft
• Maximum Loading Height: 6330 mm / 20.8 ft
• Minimum Loading Height: 1530 mm / 5 ft
• Maximum Depth Cut for 2440 mm (8 ft) Level Bottom: 5860 mm / 19.3 ft
• Maximum Vertical Wall Digging Depth: 5250 mm / 17.2 ft
• Bucket Digging Force - ISO: 21400 kN / 95 lbf
• Stick Digging Force - ISO: 13100 kN / 58 lbf
