310 - ESCAVADORAS

  • ColeçãoColeçãoESCAVADORAS
carousel
carousel
carousel
carousel
carousel
carousel
carousel
carousel
carousel
carousel
carousel

Descrição

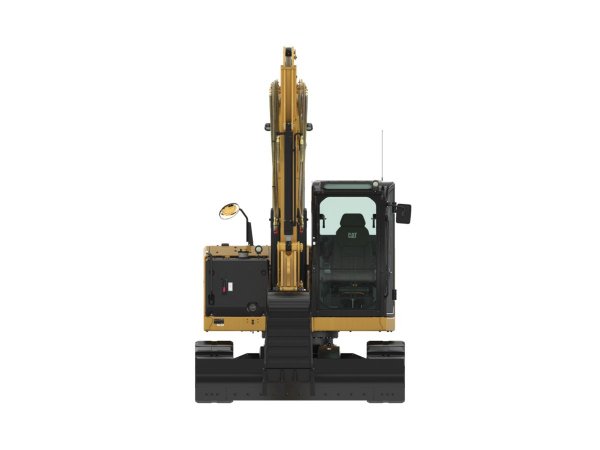

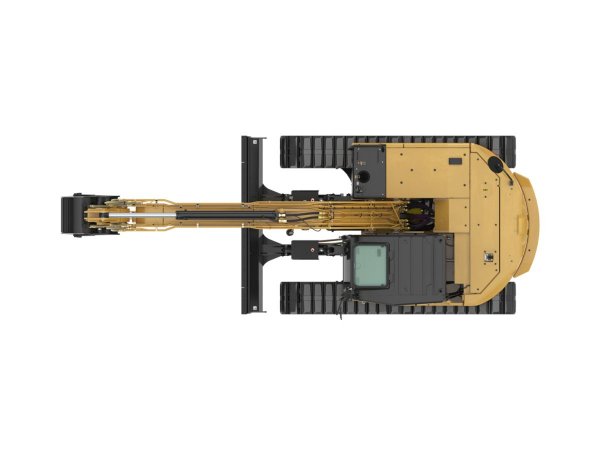

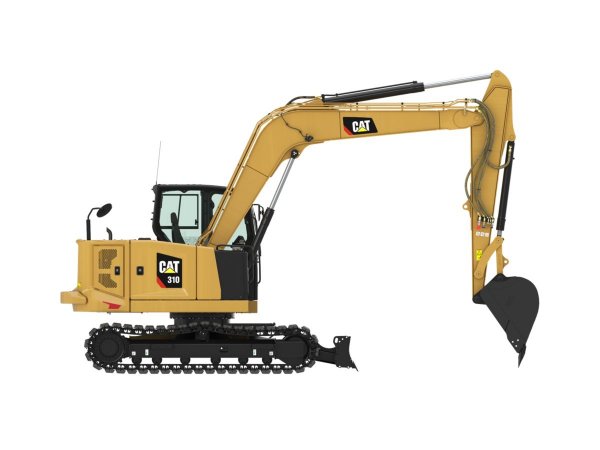

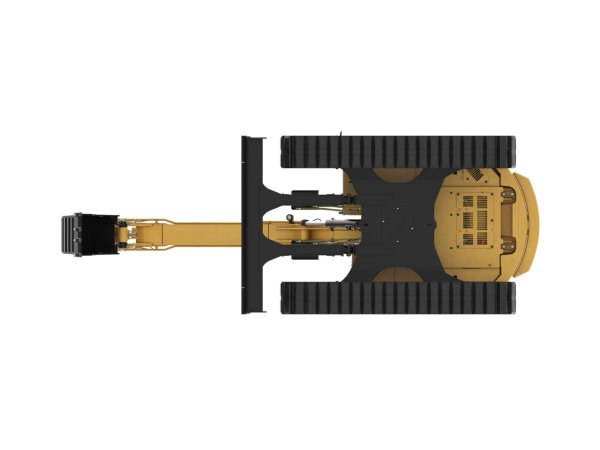

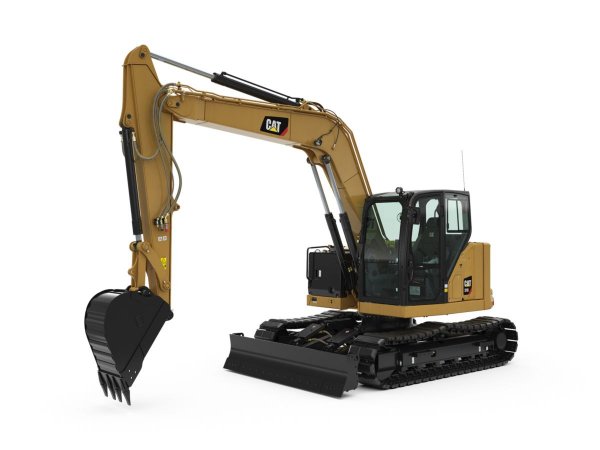

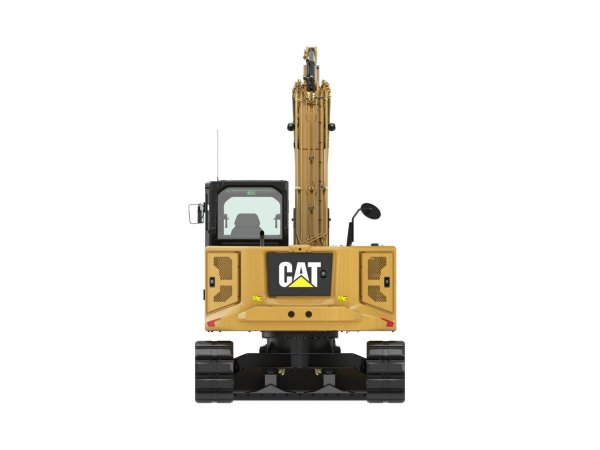

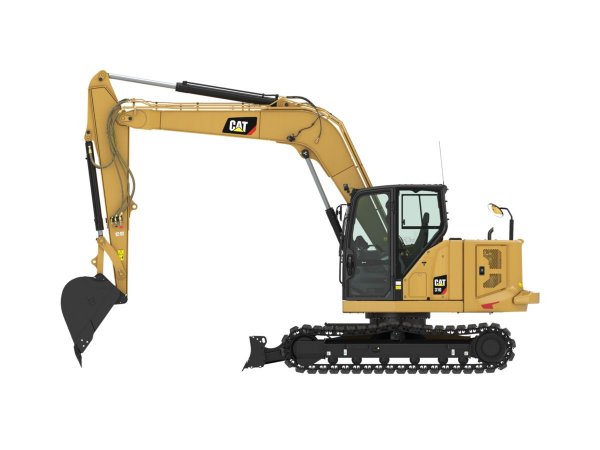

A Mini Escavadora Cat® 310 oferece potência e desempenho máximos num tamanho reduzido para ajudá-lo a trabalhar em uma ampla variedade de aplicações.

Informações Tećnicas

  • Gross Power - ISO 14396: 55.4 kW
  • Operating Weight: 10182 kg

Mais informações

Engine

  • Engine Model: Cat C3.3B
  • Net Power: 52.4 kW / 70.3 HP
  • Bore: 94 mm / 3.7 in
  • Displacement: 3.33 l / 203 in³
  • Gross Power - ISO 14396: 55.4 kW / 74.3 HP
  • Rated Net Power - 2,200 rpm - EU Stage V - ISO 9249/EEC 80/1269: 53.3 kW / 71.5 HP
  • Rated Net Power - 2,200 rpm - U.S. EPA Tier 4 Final - ISO 9249/EEC 80/1269: 52.4 kW / 70.3 HP
  • Stroke: 120 mm / 4.7 in

Weights

  • Operating Weight: 10182 kg / 22447 lb
  • Maximum Operating Weight with Cab**: 10182 kg / 22447 lb
  • Minimum Operating Weight with Cab*: 9601 kg / 21166 lb
  • Note (1): *Minimum Weight is based on steel tracks, no counterweight, operator, full fuel tank, long stick, blade and no bucket.
  • Note (2): **Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket.

Blade

  • Height: 431 mm / 17 in
  • Width - Standard: 2470 mm / 97 in
  • Width - Wide: 2640 mm / 104 in

Certification - Cab

  • Roll Over Protective Structure (ROPS): ISO 12117-2:2008
  • Tip Over Protective Structure (TOPS): ISO 12117:1997
  • Top Guard: ISO 10262:1998 (Level II)

Dimensions

  • Boom Swing Left: 0 ° / 0 °
  • Boom Swing Right: 0 ° / 0 °
  • Boom in Reach: 2272 mm / 90 in
  • Cab Height: 2607 mm / 103 in
  • Dig Depth: 5211 mm / 205 in
  • Ground Clearance: 356 mm / 14 in
  • Maximum Blade Depth: 671 mm / 26 in
  • Maximum Blade Height: 355 mm / 14 in
  • Maximum Dig Height: 7970 mm / 314 in
  • Maximum Dump Clearance: 5829 mm / 230 in
  • Maximum Reach: 7644 mm / 301 in
  • Maximum Reach - Ground Level: 7518 mm / 296 in
  • Overall Shipping Length: 6579 mm / 259 in
  • Overall Track Width: 2470 mm / 97 in
  • Overall Undercarriage Length: 3200 mm / 126 in
  • Stick Length: 2500 mm / 98 in
  • Swing Bearing Height: 822 mm / 32 in
  • Tail Swing with Counterweight: 1995 mm / 79 in
  • Tail Swing without Counterweight: 1800 mm / 71 in
  • Track Belt/Shoe Width: 450 mm / 18 in
  • Transport Height: 2884 mm / 114 in
  • Vertical Wall: 4873 mm / 192 in

Hydraulic System

  • Auxiliary Circuit - Primary - Flow: 131 l/min / 35 gal/min
  • Auxiliary Circuit - Primary - Pressure: 285 bar / 4134 psi
  • Auxiliary Circuit - Secondary - Flow: 33 l/min / 9 gal/min
  • Auxiliary Circuit - Secondary - Pressure: 285 bar / 4134 psi
  • Digging Force - Bucket: 77.7 kN / 17459 lb
  • Digging Force - Stick: 49.2 kN / 11060 lb
  • Operating Pressure - Equipment: 285 bar / 4134 psi
  • Operating Pressure - Swing: 230 bar / 3336 psi
  • Operating Pressure - Travel: 285 bar / 4134 psi
  • Pump Flow at 2,400 rpm: 233 l/min / 62 gal/min
  • Type: Load Sensing Hydraulics with Variable Displacement Piston Pump

Service Refill Capacities

  • Cooling System: 10 l / 2.6 gal (US)
  • Engine Oil: 11.2 l / 3 gal (US)
  • Fuel Tank: 145 l / 38 gal (US)
  • Hydraulic System: 140 l / 37 gal (US)
  • Hydraulic Tank: 53 l / 14 gal (US)

Sound

  • Average Exterior Sound Pressure (ISO 6395:2008): 99 dB(A) / 99 dB(A)
  • Note: European Union Directive “2000/14/EC”
  • Operator Sound Pressure (ISO 6396:2008): 72 dB(A) / 72 dB(A)

Swing System

  • Machine Swing Speed: 10.6 r/min / 10.6 r/min

Travel System

  • Gradeability - Maximum: 30 degrees
  • Ground Pressure - Maximum Weight: 44.2 kPa / 6 psi
  • Ground Pressure - Minimum Weight: 41.68 kPa / 6 psi
  • Maximum Traction Force - High Speed: 28.9 kN / 6497 lb
  • Maximum Traction Force - Low Speed: 84.8 kN / 19064 lb
  • Travel Speed - High: 4.9 km/h / 3.1 mile/h
  • Travel Speed - Low: 2.6 km/h / 1.6 mile/h

Weight Increase from Minimum Configuration

  • Counterweight: 250 kg / 552 lb
  • Steel Tracks with Pads: 330 kg / 728 lb
