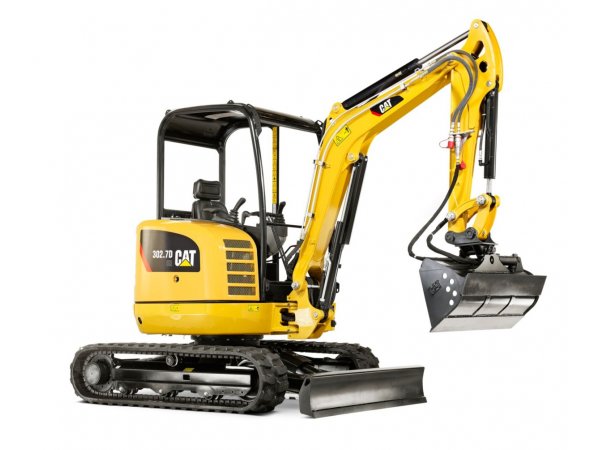

Miniescavadora Hidráulica Cat® 302.7D CR

Informações Tećnicas

• Gross Power: 17.9 kW
• Operating Weight: 2670 kg

Mais informações

Engine

• Engine Model: Yanmar 3TNV76
• Net Power: 15.2 kW / 20.7 HP
• Gross Power: 17.9 kW / 24.3 HP
• Displacement: 1115 cm³ / 68 in³
• Rated Net Power – ISO 9249: 15.2 kW / 20.7 HP

Weights

• Operating Weight: 2670 kg / 5890 lb
• Operating Weight – With Cab: 2670 kg / 5886 lb
• Operating Weight – With Canopy: 2577 kg / 5681 lb

Dimensions

• Boom Swing Angle – Left: 75 ° / 75 °
• Boom Swing Angle – Right: 50 ° / 50 °
• Height: 2408 mm / 7.9 ft
• Length – Undercarriage: 2006 mm / 79 in
• Maximum Dig Height: 4170/4300 mm (13 ft 8 in/14 ft 1 in)
• Maximum Digging Depth: 2544/2744 mm (8 ft 4 in/9 ft 0 in)
• Maximum Dozer Dig Depth: 419 mm / 16 in
• Maximum Dozer Lift Height: 380 mm / 15 in
• Maximum Dumping Height: 2840/2970 mm (9 ft 4 in/9 ft 8 in)
• Maximum Reach: 4613/4805 mm (15 ft 1 in/15 ft 10 in)
• Maximum Reach – Ground Level: 4481/4681 (14 ft 8 in/15 ft 5 in)
• Maximum Vertical Dig Depth: 1962/2152 mm (6 ft 5 in/7 ft 1 in)
• Minimum Front Linkage Swing Radius: 533 mm / 21 in
• Tail Swing Radius: 760 mm / 30 in
• Track Width: 764 mm / 30 in
• Transport Length – Arm Lowered: 4255 mm / 14 ft
• Width: 1570 mm / 5.15 ft

Travel System

• Gradeability: 30°/58%
• Travel Speed: 2.1 km/h/3.8 km/h (1.30 mph/2.36 mph)

Hydraulic System

• Operating Pressure – Equipment: 225 bar / 3263 psi
• Operating Pressure – Travel: 225 bar / 3263 psi
• Operating Pressure – Swing: 206 bar / 2987 psi
• Auxiliary Circuits – Primary: 52.2 L/min at 225 bar (13.8 gal/min at 3,263 psi)
• Auxiliary Circuits – Secondary: 30.8 L/min at 206 bar (8.1 gal/min at 2,988 psi)
• Maximum Bucket Force: 22.5 kN / 5058 lb
• Maximum Stick Force – Standard/Long: 15.4 kN/13.6 kN (3,462 lbf/3,057 lbf)
• Pump Flow at 2,500 rpm: 89.4 l/min / 23.6 gal/min

Blade

• Width: 1570 mm / 61.9 in
• Height: 290 mm / 11.4 in
• Dig Depth: 419 mm / 16.5 in
• Lift Height: 380 mm / 15 in

Service Refill Capacities

• Fuel Tank Capacity: 35.2 l / 9.3 gal (US)
• Hydraulic Tank Capacity: 26.5 l / 7 gal (US)
