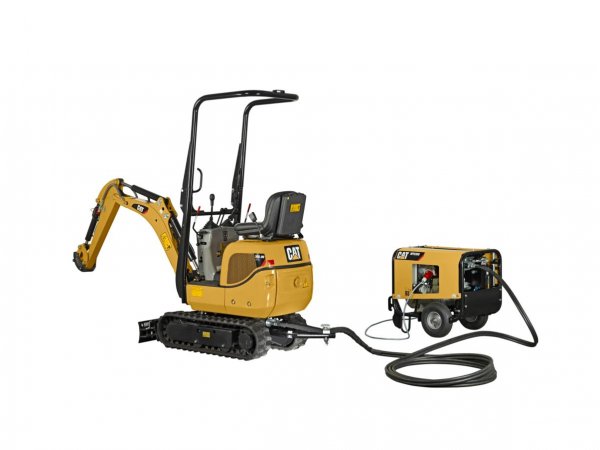

O inovador HPU300 com a Mini Escavadora 300.9D oferece versatilidade num tamanho compacto com uma opção de diesel ou energia elétrica.

Informações Tećnicas

• Gross Power: 9.7 kW
• Operating Weight: 1088 kg

Mais informações

Operating Specifications – 300.9D VPS

• Digging Depth: 1731 mm / 68 in
• Dumping Height – Maximum: 2035 mm / 80 in
• Reach at Ground Level: 3027 mm / 119 in
• Bucket Force: 8.9 kN / 2000 lbf
• Stick Force: 4.5 kN / 1012 lbf

Engine

• Engine Model: Yanmar 3TNV70
• Net Power: 9.7 kW / 13 HP

Engine – 300.9D VPS

• Engine Type: Liquid Cooled, 3 Cylinder, Diesel
• Fuel Tank Capacity: 10 l / 2.6 gal (US)
• Gross Power: 9.7 kW / 13 HP

Weights

• Operating Weight: 1088 kg / 2399 lb

Dimensions – 300.9D VPS

• Length × Width × Height: 2476 × 700 × 1507 mm (108 × 28 × 59 in)
• Operating Weight: 1088 kg / 2399 lb
• Shipping Weight: 988 kg / 2178 lb

Hydraulic System – 300.9D VPS

• Operating Pressure – Front Linkage and Travel: 170 bar / 2466 psi
• Operating Pressure – Swing Gear: 70 bar / 1015 psi
• Pump Flow: 22 l/min / 6 gal/min
• Pump Type: Gear
• Rotation Speed: 8 r/min / 8 r/min
• Hydraulic Tank Capacity: 14 l / 3.7 gal (US)

Blade – 300.9D VPS

• Dig Depth: 174 mm / 7 in
• Height: 200 mm / 8 in
• Lift Height: 197 mm / 8 in
• Width: 700 mm / 28 in

Dimensions – HPU300

• Length × Width × Height: 930 × 720 × 1000 mm (36.5 × 28.3 × 39.5 in)
• Operating Weight: 192 kg / 423 lb

Hydraulics – HPU300

• Connecting Hose Length: 10 m / 32.8 ft
• Flow Rate: 20 l/min / 5.3 gal/min
• Hydraulic Oil Tank Capacity: 9 l / 2.4 gal (US)
• Operating Pressure: 190 bar / 2756 psi

Motor – HPU300

• Input Current: 16A
• Motor Type: 3 Phase Electric Motor
• Performance: 7.5 kW / 10 HP

Travel System – 300.9D VPS

• Track Width: 180 mm / 7.1 in
• Travel Speed: 1.8 km/h / 1.1 mile/h
