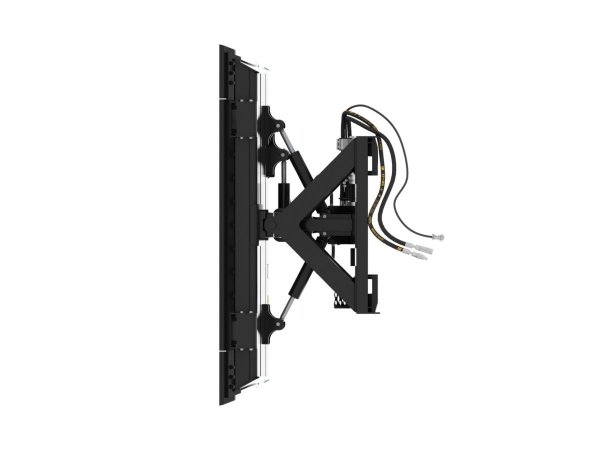

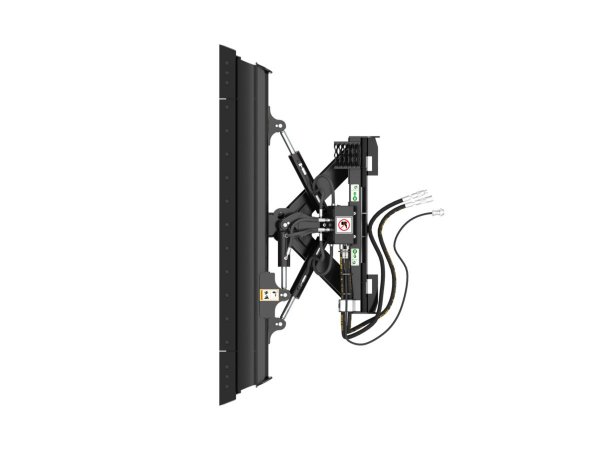

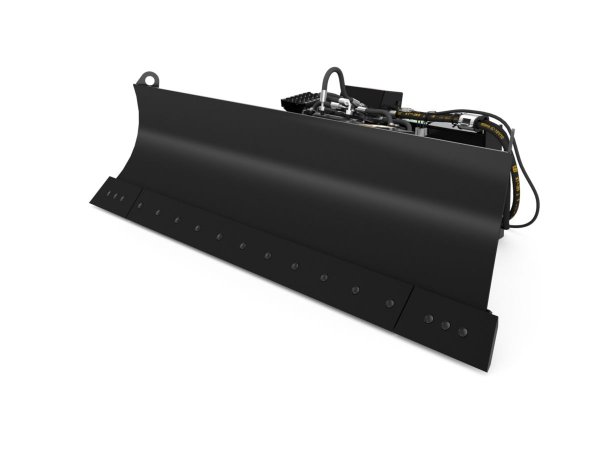

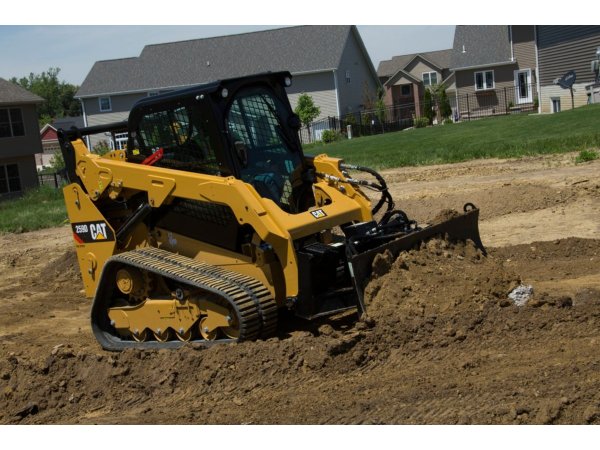

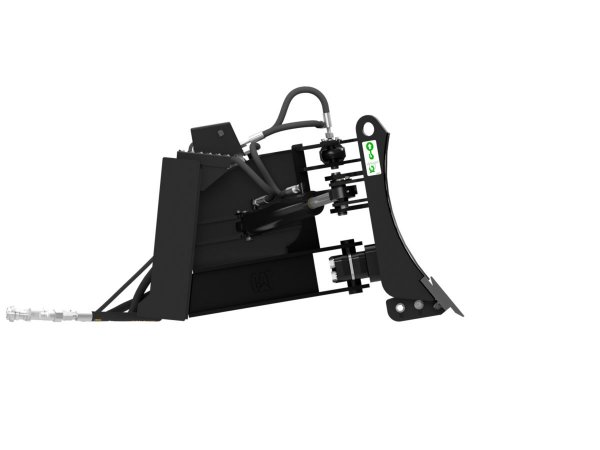

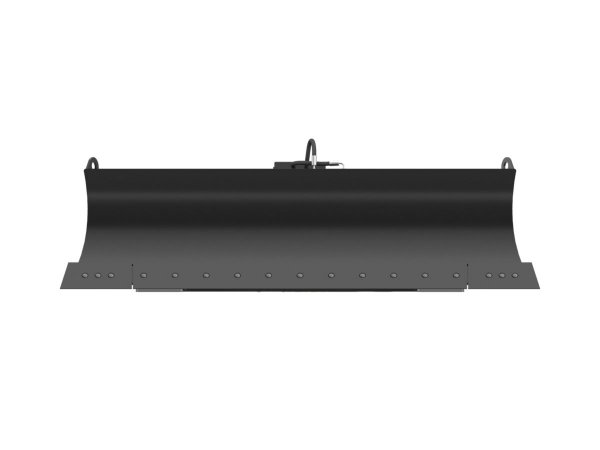

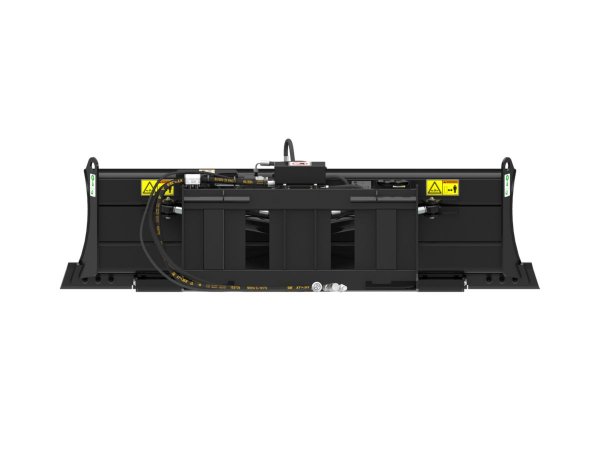

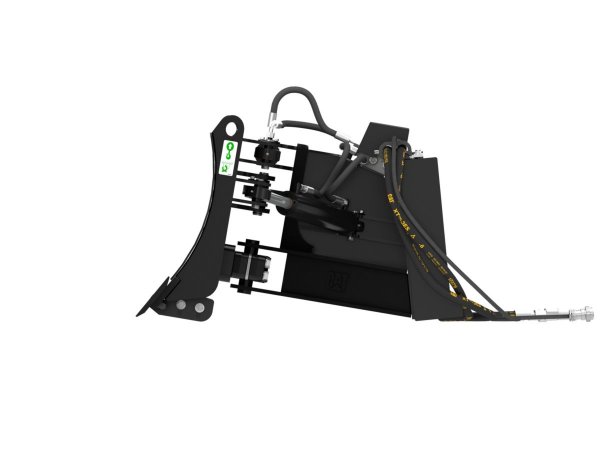

Cat® Dozer Blades are designed for rough and finish grading in dirt and gravel, and light dozing. With their 6-way capabilities, dozer blades are better suited for finish grade work in construction and landscaping applications.

Informações Tećnicas

• Overall Width: 2337 mm
• Length: 1028 mm

Mais informações

Geral

• Overall Width: 2337 mm / 92 in
• Width - Fully Angled: 2049 mm / 81 in
• Blade Height: 619 mm / 24 in
• Cutting Edge Thickness: 16 mm / 0.63 in
• Length: 1028 mm / 40 in
• Maximum Blade Angle - Right/Left of Center: ±30 degrees
• Required Hydraulic Flow: 49-125 L/min (13-33 gpm)
• Tilt: ±10 degrees
• Weight: 528 kg / 1164 lb
• Optimum Hydraulic Pressure: 206-311 bar (3000-4500 psi)
• Required Hydraulics: Standard Flow
