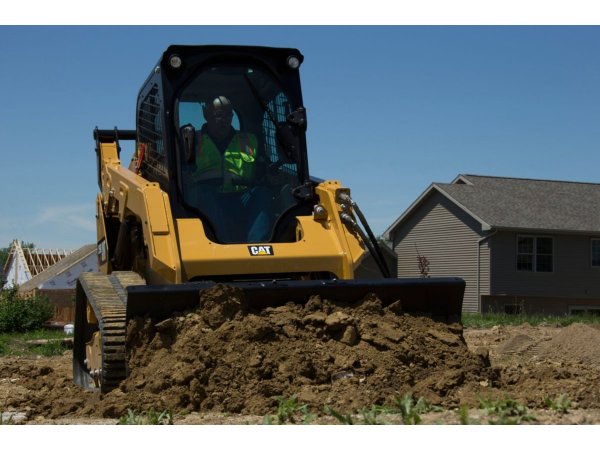

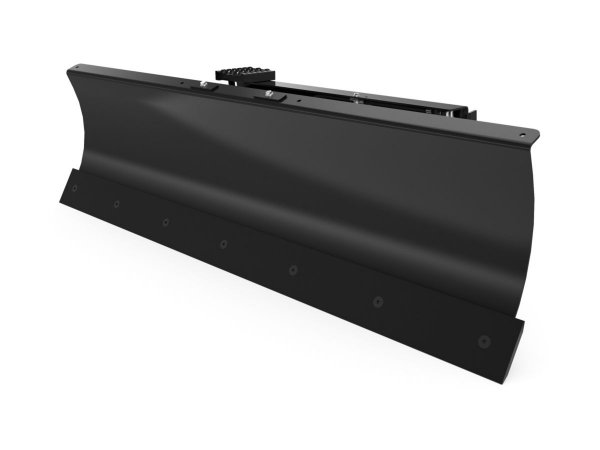

Cat® Angle Blades are useful work tools in a wide range of applications for moving dirt, gravel, livestock waste and snow. They are also useful for finish grade work in construction and landscaping.

Informações Tećnicas

• Overall Width: 2198 mm
• Weight: 331 kg

Mais informações

Geral

• Weight: 331 kg / 730 lb
• Blade Height: 614 mm / 24 in
• Cutting Edge Thickness: 16 mm / 0.63 in
• Length: 753 mm / 30 in
• Maximum Blade Angle - Right/Left of Center: ±30 degrees
• Overall Width: 2198 mm / 87 in
• Required Hydraulic Flow: 42-86 L/min (11-23 gpm)
• Width - Fully Angled: 1949 mm / 78 in
• Optimum Hydraulic Pressure: 145-235 bar (2100-3400 psi)
• Required Hydraulics: Standard Flow
